Descripción:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Característica:

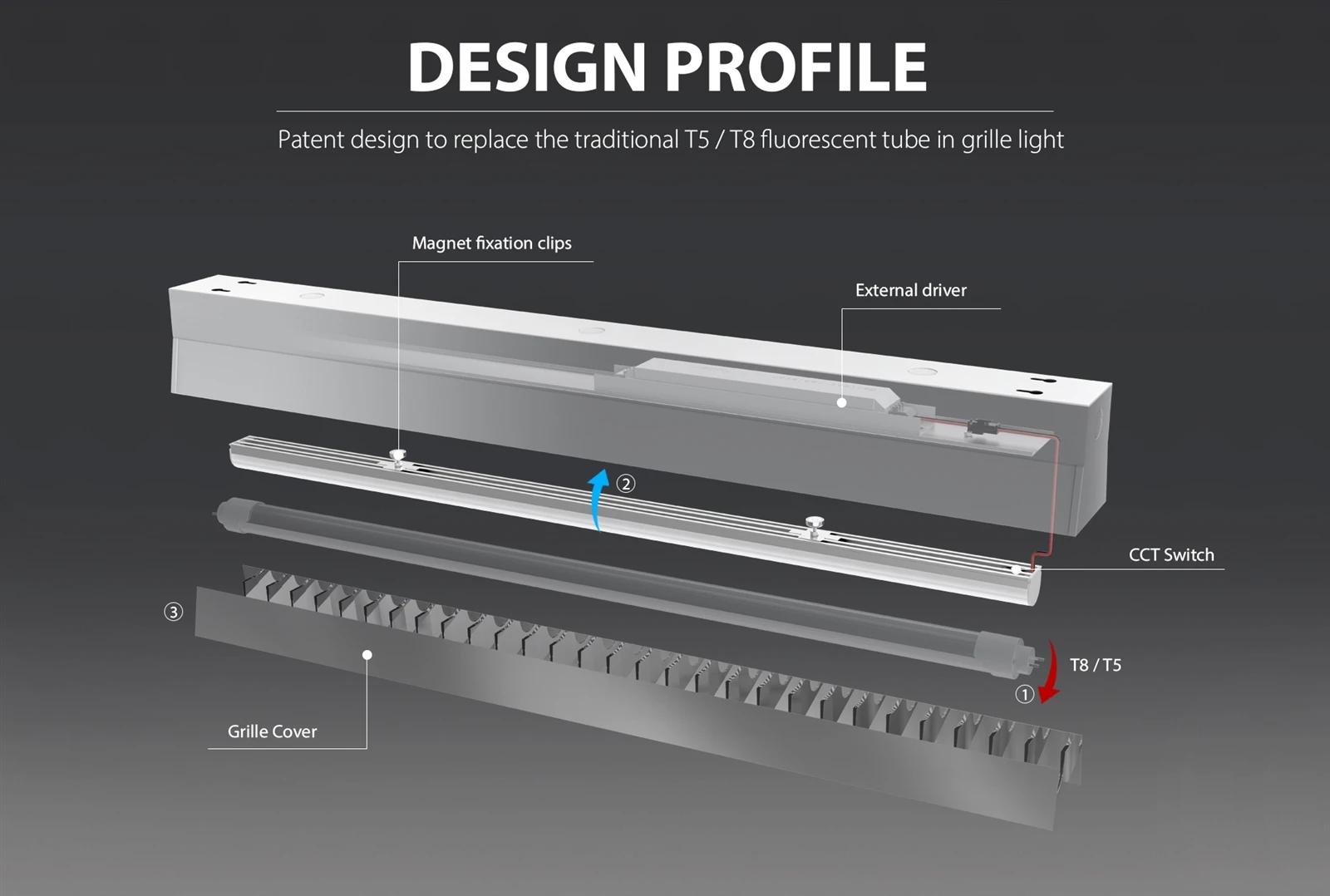

>Diseño patentado para sustituir el tradicional tubo fluorescente T5/T8 en troffer

>Campo de potencia y color (3CCT)-ajustable

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>Magnet Tool-instalación gratuita, fácil de mantener y ahorra costes laborales

>Un 80% más de ahorro energético en comparación con las lámparas fluorescentes

Send Inquiry

Download

Description

Technical Parameters

INTRODUCCIÓN:

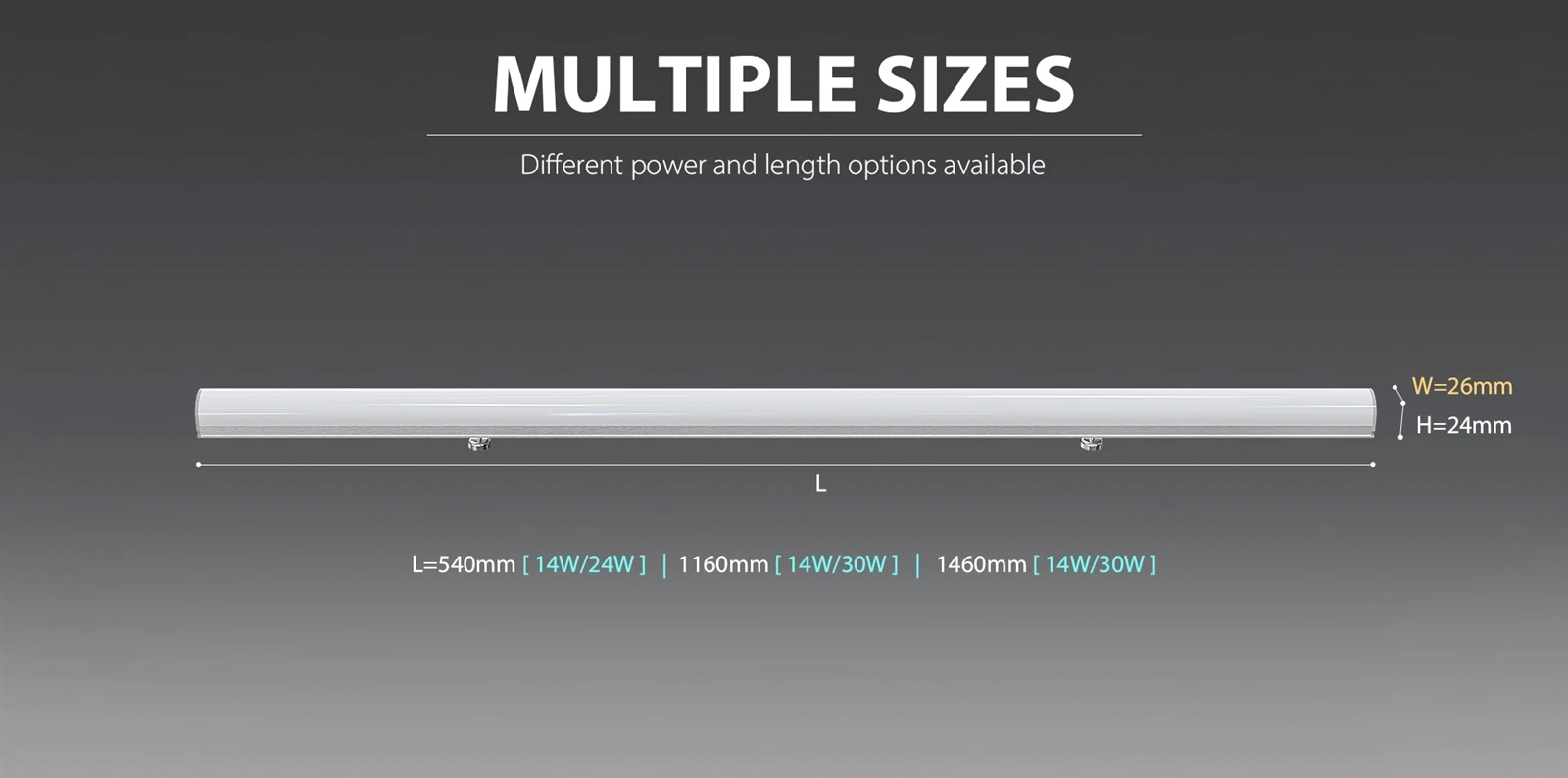

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

Código de pedido	Potencia nominal	LM/W	Lúmenes	SDCM/Ra	Clase IP	Dimensión del producto	GW/CTN	Cantidad/caja
TU100-02N-PT1-24F10-01	14W/24W	Tipo 120	tipo 1680/2880	SDCM<3/Ra80,90	IP20	L540xAn26xAl24	9,91kg	25 piezas
TU100-04N-AT1-30F10-01	14W/30W	Tipo 130	tipo 1820/3900	SDCM<3/Ra80,90	IP20	L1160xAn26xAl24	14,93kg	25 piezas
TU100-05N-AT1-30F10-01	14W/30W	Tipo 130	tipo 1820/3900	SDCM<3/Ra80,90	IP20	L1460xAn26xAl24	17,4 kilos	25 piezas
